GestureManager Class Reference

The GestureManager class is a pure abstract class that provides an interface to create any gesture and manages its state. More...

#include <gesturemanager.h>

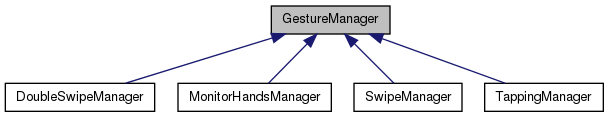

Inheritance diagram for GestureManager:

Collaboration diagram for GestureManager:

Public Member Functions
	GestureManager ()
	~GestureManager ()
virtual void	updateStatus (FrameData &params)
	updateStatus processes the data of the given frame More...
virtual bool	isGestureDetected (FrameData &params)=0
	isGestureDetected determines if the gesture is detected with the given data More...
virtual void	generateGestureData (FrameData &params)=0
	generateGestureData This function generates the data needed for the gesture manager More...
virtual void	onStatusInit (FrameData &params)=0
	onStatusInit This function is called the first time the init counter reaches 0 More...
virtual void	onStatusActive (FrameData &params)=0
	onStatusActive This function is called while the status is active, until the end counter reaches 0 More...
virtual void	onStatusFinish (FrameData &params)=0
	onStatusFinish This function is called when the end counter reaches 0 More...
virtual void	onStatusInactive (FrameData &params)=0
	onStatusInactive This function is called when the status is set to inactive More...
virtual void	setIOManager (IOEventManager *eventManager)
	setIOManager This function changes the event manager associated with this class More...
virtual IOEventManager *	getIOManager ()
virtual bool	isActive () const
int	getCounterInitMax () const
void	setCounterInitMax (int value)
int	getCounterEndMax () const
void	setCounterEndMax (int value)

Protected Member Functions
virtual void	resetInitCounter ()
virtual void	resetEndCounter ()

Protected Attributes
int	counterInit
int	counterEnd
int	counterInitMax
int	counterEndMax
IOEventManager *	iomanager
bool	gestureDetected
boost::mutex	iomanagerMutex

Static Protected Attributes
static const int	STATUS_ACTIVE =0
static const int	STATUS_INACTIVE =-2
static const int	STATUS_INIT =-1
static const int	STATUS_FINISH =1

Detailed Description

The GestureManager class is a pure abstract class that provides an interface to create any gesture and manages its state.

The key idea is that for each frame the controller is going to call updateStatus(). The object will decide then its state and execute the apropiate function. For managing the status the class uses counters. If the init counter is set to N the class will switch the state to active when N observations of the gesture have been detected. An equivalent process is applied for a counter to end the gesture.

For making a gesture work it is enough to override the pure virtual functions. Note that each gesture is independent and will not exclude other gestures from being performed.

The GestureManager is associated with an IOEventManager that should be called in the overriden functions accordingly to perform the event.

Constructor & Destructor Documentation

GestureManager::GestureManager

(

)

GestureManager::~GestureManager ( )

inline

Member Function Documentation

virtual void GestureManager::generateGestureData ( FrameData &  params )

pure virtual

generateGestureData This function generates the data needed for the gesture manager

Parameters

params

data of the frame needed for the gesture

This function is called every time that GestureManager::updateStatus is called and GestureManager::isGestureDetected returns True

Implemented in SwipeManager, TappingManager, DoubleSwipeManager, and MonitorHandsManager.

int GestureManager::getCounterEndMax

(

)

const

int GestureManager::getCounterInitMax

(

)

const

IOEventManager * GestureManager::getIOManager ( )

virtual

bool GestureManager::isActive ( ) const

virtual

virtual bool GestureManager::isGestureDetected ( FrameData &  params )

pure virtual

isGestureDetected determines if the gesture is detected with the given data

Parameters

params

data of the frame needed for the gesture

Returns

True when the gesture is detected

Implemented in SwipeManager, TappingManager, DoubleSwipeManager, and MonitorHandsManager.

virtual void GestureManager::onStatusActive ( FrameData &  params )

pure virtual

onStatusActive This function is called while the status is active, until the end counter reaches 0

Parameters

params

data of the frame needed for the gesture

Note that the status can be active serveral frames so this function is going to be called several times in a row.

Implemented in SwipeManager, TappingManager, DoubleSwipeManager, and MonitorHandsManager.

virtual void GestureManager::onStatusFinish ( FrameData &  params )

pure virtual

onStatusFinish This function is called when the end counter reaches 0

Parameters

params

data of the frame needed for the gesture

After this function is called the state of the gesutre is going to be set as inactive. The function should not be called again until the status of the gesture has gone to active again.

Implemented in SwipeManager, TappingManager, DoubleSwipeManager, and MonitorHandsManager.

virtual void GestureManager::onStatusInactive ( FrameData &  params )

pure virtual

onStatusInactive This function is called when the status is set to inactive

Parameters

params

data of the frame needed for the gestures

In case a gesture needs passive information this is the function where it should be recorded.

Implemented in SwipeManager, TappingManager, DoubleSwipeManager, and MonitorHandsManager.

virtual void GestureManager::onStatusInit ( FrameData &  params )

pure virtual

onStatusInit This function is called the first time the init counter reaches 0

Parameters

params

data of the frame needed for the gesture

After this function is called the state of the gesture is going to be set as active. The function should not be called again until the status of the gesture has gone to inactive again.

In this function all the atributes that are going to be needed during the gesture should be initialized.

Implemented in SwipeManager, TappingManager, DoubleSwipeManager, and MonitorHandsManager.

void GestureManager::resetEndCounter ( )

protectedvirtual

void GestureManager::resetInitCounter ( )

protectedvirtual

void GestureManager::setCounterEndMax

(

int

value

)

void GestureManager::setCounterInitMax

(

int

value

)

void GestureManager::setIOManager ( IOEventManager *  eventManager )

virtual

setIOManager This function changes the event manager associated with this class

Parameters

eventManager

pointer to the new event manager

This function has lateral effects. No copy of the reference is done.

void GestureManager::updateStatus ( FrameData &  params )

virtual

updateStatus processes the data of the given frame

Parameters

params

data of the frame needed for the gesture

This function will call GestureManager::generateGestureData, GestureManager::onStatusInit, GestureManager::onStatusActive, GestureManager::onStatusFinish or GestureManager::onStatusInactive depending on the output of the function GestureManager::isGestureDetected and the values of the counters.

Member Data Documentation

int GestureManager::counterEnd

protected

int GestureManager::counterEndMax

protected

int GestureManager::counterInit

protected

int GestureManager::counterInitMax

protected

bool GestureManager::gestureDetected

protected

IOEventManager* GestureManager::iomanager

protected

boost::mutex GestureManager::iomanagerMutex

protected

const int GestureManager::STATUS_ACTIVE =0

staticprotected

const int GestureManager::STATUS_FINISH =1

staticprotected

const int GestureManager::STATUS_INACTIVE =-2

staticprotected

const int GestureManager::STATUS_INIT =-1

staticprotected

---

The documentation for this class was generated from the following files:

• gesturemanager.h
• gesturemanager.cpp
